Shiftworks Shift Cable

SKU: K100-30

$106.00
  • Shiftworks Shift Cable
  • Shiftworks Shift Cable
  • Shiftworks Shift Cable
  • Shiftworks Shift Cable
  • Shiftworks Shift Cable
  • Shiftworks Shift Cable

Shiftworks Shift Cable

SKU: K100-30

$106.00
$106.00

Features

  • ¼” eyelets at each end
  • Total travel – 2 ½”
  • Better flexibility
  • Adjustable connections at bulkhead
  • Stainless cable
  • Smoother operation

Overview

See the true comparison!

Custom Cable Lengths are available upon request.

The Shiftworks cable has great flexibility with a bend radius of 2 inches, a load rating of 80 lbs. of push and 120 lbs. of pull, adjustable bulkhead connectors, stainless cable, non-booted modern dry sweep design, and is easier to install as a result. All cables have 2 1/2 inches of travel.

Shiftworks Cables are made in the U.S.A.

Cable Specifications

**Bulkhead to Bulkhead length is measured from the bracket on the transmission to the bracket on the shifter

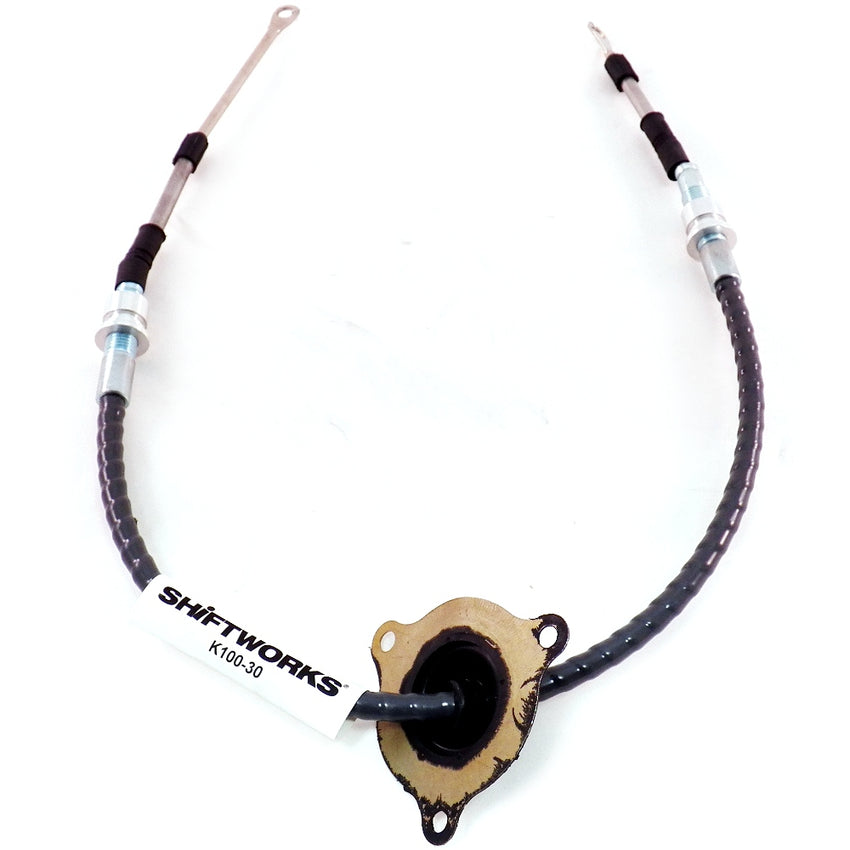

  • 30" Cable (MOST COMMONLY USED)
    • 30" eyelet to eyelet
    • Bulkhead-to-Bulkhead length is 17 ¼”-18”
    • *This cable may be used as a direct replacement for factory GM3956765

  • 32" Cable (RECOMMENDED FOR 4L80E)
    • 32" eyelet to eyelet
    • Bulkhead-to-Bulkhead length is 19 ¼”-20”
    • *This cable is the recommended minimum length for most 4L80E Applications

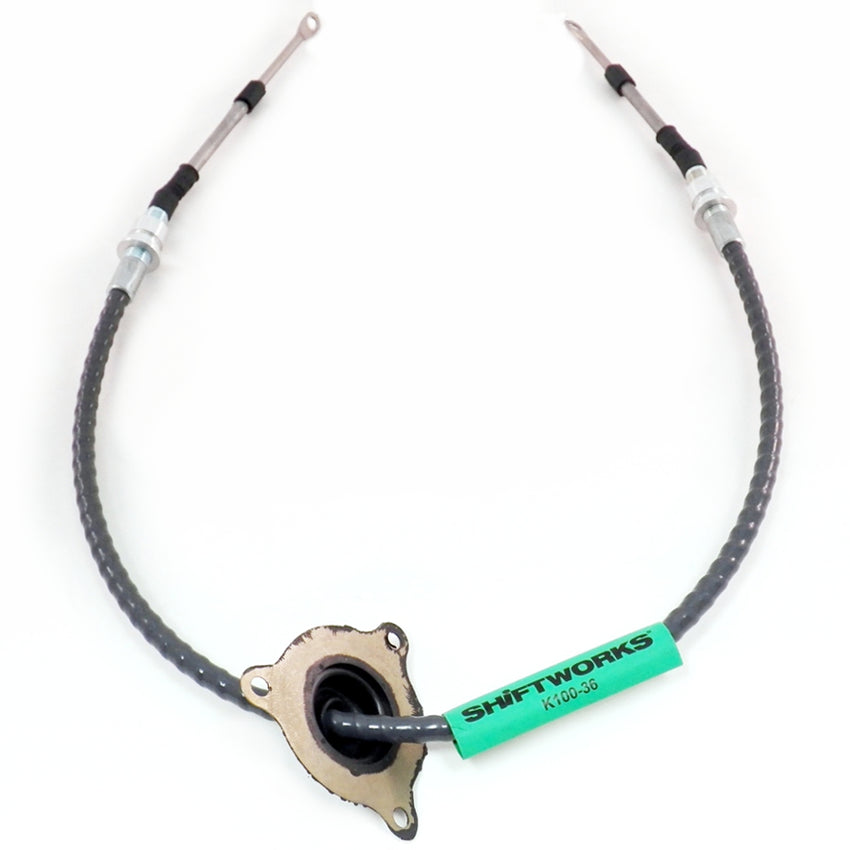

  • 36" Cable
    • 36" eyelet to eyelet
    • Bulkhead-to-Bulkhead length is 23 ¼”-24”

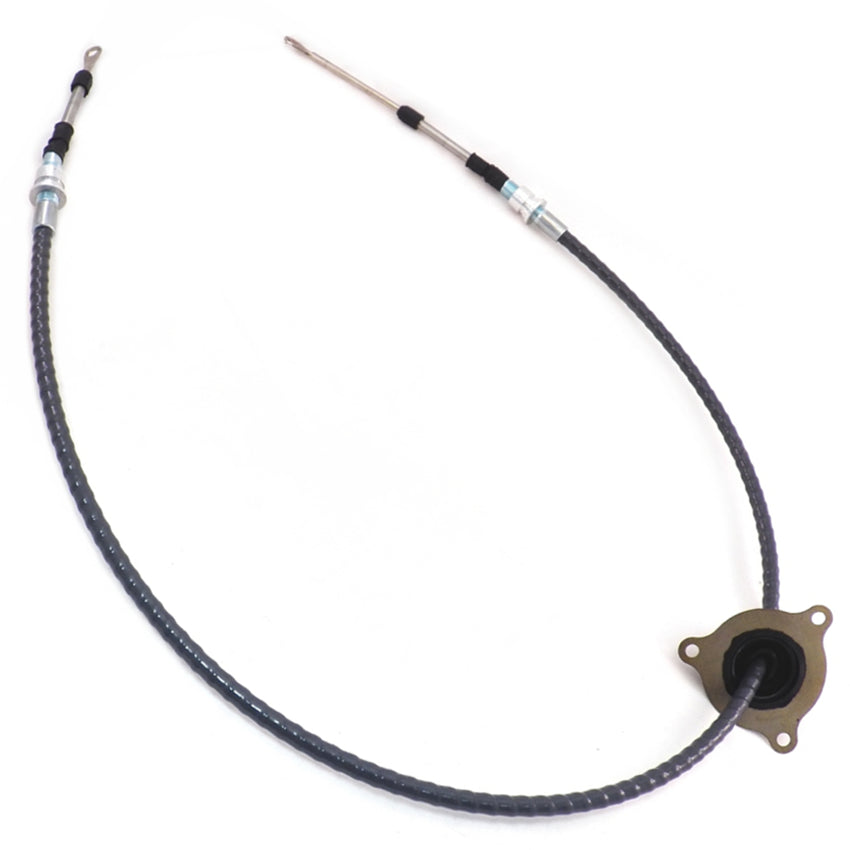

  • 48" Cable
    • 48" eyelet to eyelet
    • Bulkhead-to-Bulkhead length is 35 ¼”-36”
